热反射管-铝箔+玻璃纤维 ALUTEX

Alutex-A

Alutex

Aluwrap

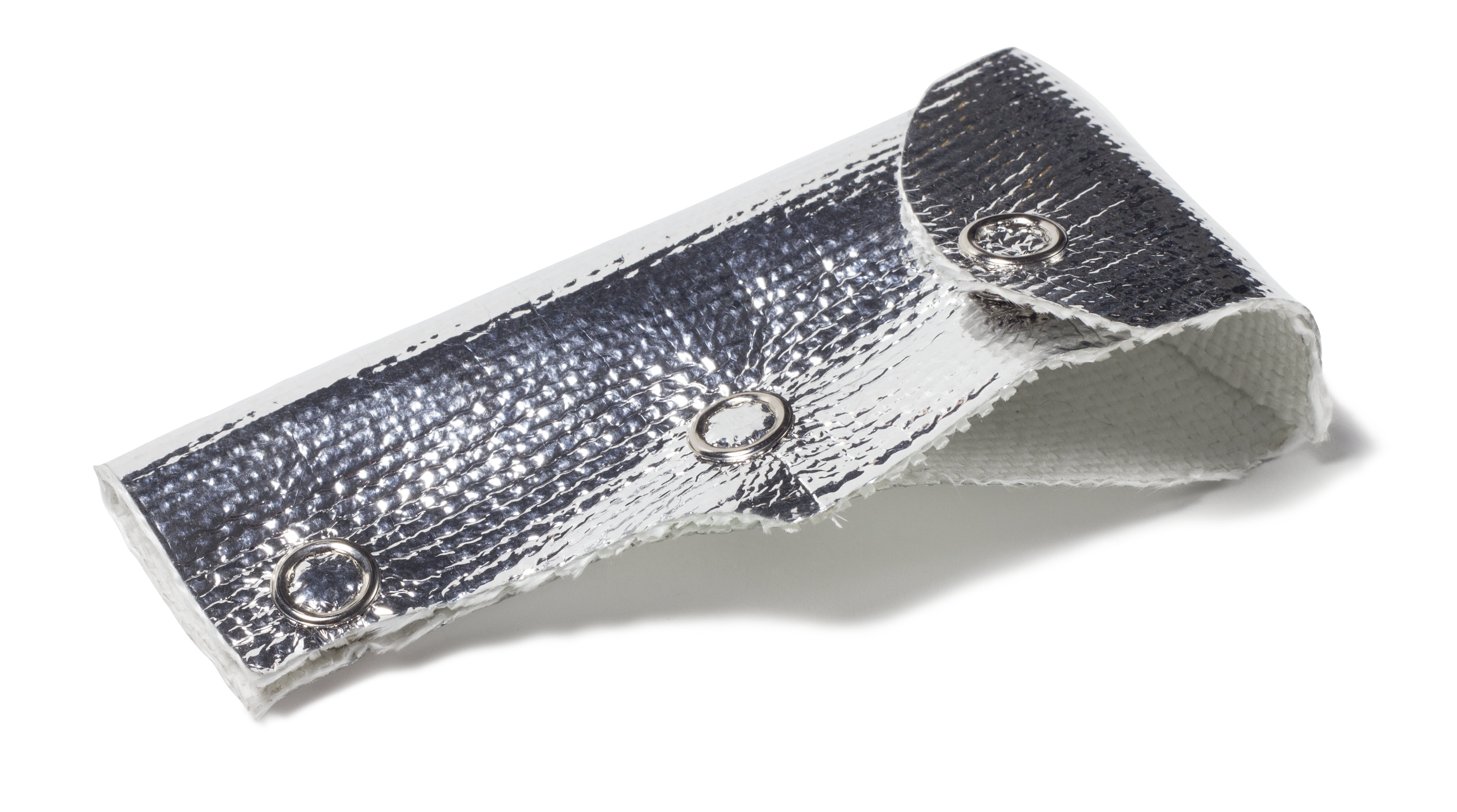

Alubag

넳 넲

时间：2022-03-29 08:05

汽车行业  Automotive industry
线束保护  Cable manufacture
新能源/混动 E-mobility / hybrid
工程机械  Machinery and plant engineering

产品详情

主要特性 Key properties

Long-term heat resistance of -40°C to +200°C
长期工作温度-40°C to +200°C
Temperature resistance to radiant heat up to +600°C
热源温度可达 +600°C
Self-extinguishing
自熄
Good flexibility and tensibility
柔软，拉力强
Nominal diameter 10 mm to 30.0 mm
内径尺寸 10 mm 到 30.0 mm
Physiologically harmless
环保，环保，无害，无毒

产品描述 Product description

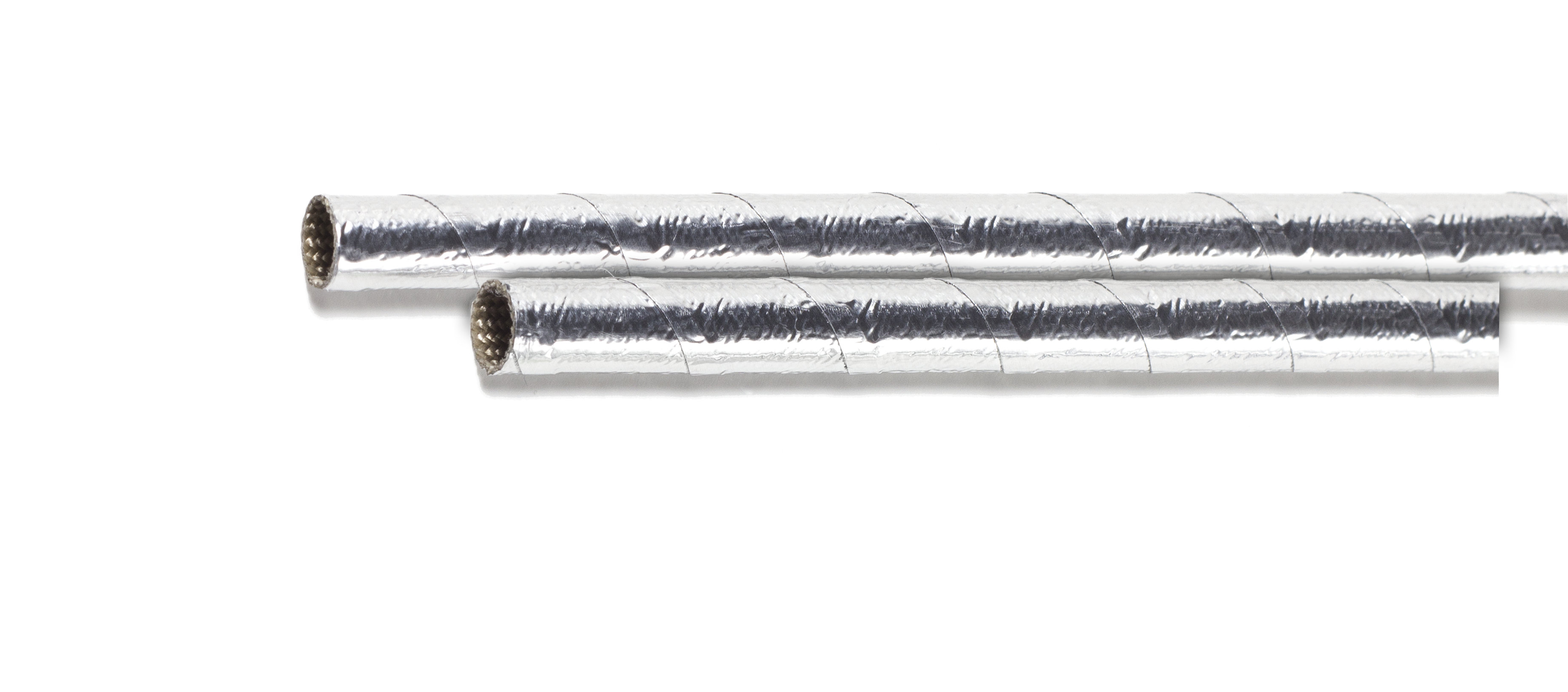

ALUTEX 是一种纵向层压柔性和自熄灭热保护套管，由特别耐热的纺织玻璃纤维和金属表面由纯铝制成。铝表面对辐射热有很高的反射率，即使在暂时过热的情况下，也有很好的防热辐射保护功能。因此，在暂时过热的情况下，即使结合层被损坏，热保护功能仍然很大程度上。ALUTEX A是屏蔽辐射热到邻近部件的理想材料，例如发动机舱内。

一个很好的安装是可能在紧密的弯曲半径，因为纵向层压。通过使用ALUTEX，电缆和电缆束不吸收或显著减少邻近热组件的热量。

ALUTEX is a longitudinally laminated flexible and self-extinguishing heat protection sleeves made of a particularly heat-resistant textile glass fabric (e-glass) and metalllic surface made of pure aluminum. The aluminum surface has very high reflectivity to radiation heat and has excellent protection function against thermal radiation even in situations of temporary overheating. Therefore in case of temporary overheating and even if the binding layer is damaged, the heat protecting function remains largely. ALUTEX is ideal for shielding radiant heat to adjacent components, e.g. in the engine compartment.

A very good installation is possible in tight bendind radius because of the longitudinally lamination. By using ALUTEX cables and cable harnesses absorb non or significantly less heat from hot adjacent components.

产品特性 Application properties

Property 特性

Standard 标准

Test requirements 测试条件

Result 结果

Flame resistance

Flame height 38mm Flame exposure 15s

火焰高度38mm

燃烧时间15S

Self-extinguishing

热反射效果

Ceramic spotlight 600°C Distance spotlight 20mm Test time 24h

陶瓷热源600600°C

按照距离间隔20mm

测试时间24小时

Inner sleeve temperature 70°C

铝箔套管内部 70°C

老化性能 Aging

Property 特性

Standard 标准

Test requirements 测试条件

Result 结果

Short-term ageing 375h / 200°C

短期老化 375h / 200°C

Based on LV 312-3

Adhesion of aluminium foil

铝箔和玻璃纤维内层

Requirements achieved

参考尺寸 Standard dimensions

ID [mm]	Tol. ID [mm]	Wd [mm]	Tol. Wd [mm]	Ring [m]
10.0	±0.5	0.7	±0.3	50
11.0	±0.5	0.7	±0.3	50
12.0	±0.5	0.7	±0.3	50
13.0	±0.5	0.7	±0.3	50
14.0	±0.5	0.7	±0.3	25
15.0	±0.8	0.7	±0.3	25
16.0	±0.8	0.8	±0.3	25

17.0	±0.8	0.8	±0.3	25
18.0	±0.8	0.8	±0.3	25
19.0	±0.8	0.8	±0.3	25
20.0	±1.0	1.0	±0.4	25
21.0	±1.0	1.0	±0.4	25
22.0	±1.0	1.0	±0.4	25
23.0	±1.0	1.0	±0.4	25
24.0	±1.0	1.0	±0.4	25
25.0	±1.0	1.0	±0.4	25
26.0	±1.0	1.2	±0.4	25
27.0	±1.0	1.2	±0.4	25
28.0	±1.0	1.2	±0.4	25
29.0	±1.0	1.2	±0.4	25
30.0	±1.0	1.2	±0.4	25

典型应用 Typical uses
